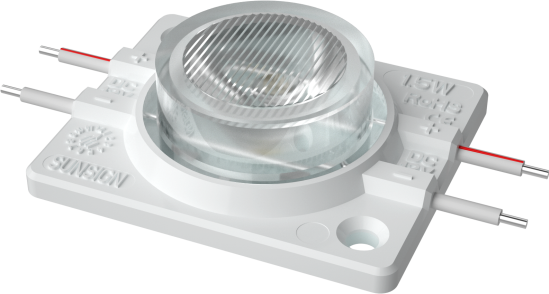

SUNSIGN PREMIUM 1 DS LED MODULE

Features

  • Constant Current Technology
  • Injection Molding Process With Opti Lens
  • High Efficiency Chip, High Brightness and Reliability
  • Energy Saving, Environment Friendly
  • LED Driver : Constant Voltage Driving System
  • Fabricated with a Wide Angle Optical Lens
  • Application :Big Size Channel Letters, light Box & Glow Sign Board Single and Double Side Light  Box, Commercial Standing Lighting
.

Technical Specification




Model ARI 3030 - 1 LED
Product Type D.S. Light Box
LED (Chip) TAIWAN
Color (CCT) 6500K
Operating Power DC 12 V
Power Dissipation 1.5W
Luminous Flux (lm) 125 lm
View Angle 15*55°
Dimension (mm) 40*35*13
Operating Temperature -20~ 70
Max Series Connection 30 Modules
Waterproof IP 67
Warranty 5 Years
