Technical Specification

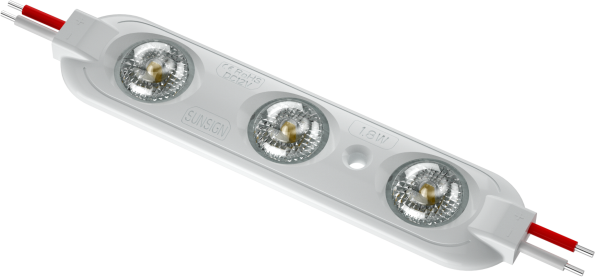

Model ARI 2835 - 3 LED
Product Type Opti Lens
LED (Chip) TAIWAN
Color (CCT) 3000K, 10000K, RED
Operating Power DC 12 V
Power Dissipation 1.5W / 1W
Luminous Flux (lm) 135 lm
View Angle 160°
Dimension (mm) 75*16*5
Operating Temperature -20~ 70
Max Series Connection 20 Modules
Waterproof IP 67
Warranty 3 Years
