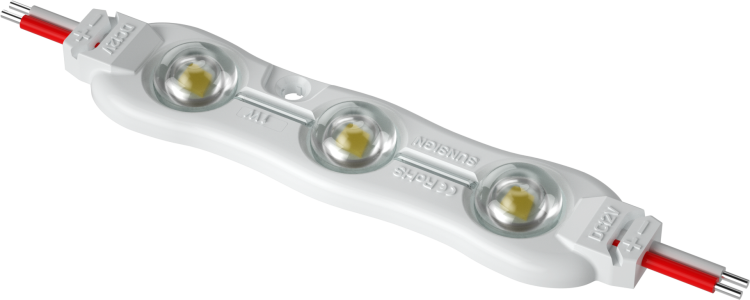

SUNSIGN PREMIUM 3 LED MODULE

Features

  • Constant Current Technology
  • Injection Molding Process With Opti Lens
  • High Efficiency Chip, High Brightness and Reliability
  • Energy Saving, Environment Friendly
  • LED Driver : Constant Voltage Driving System
  • Fabricated with a Wide Angle Optical Lens
  • Application :Big Size Channel Letters, light Box & Glow Sign Board Single and Double Side Light  Box, Commercial Standing Lighting
.

Technical Specification



Model ARI 2835 - 3 LED
Product Type Crystal Lens
LED (Chip) TAIWAN
Color (CCT) 3000K, 10000K, RED
Operating Power DC 12 V
Power Dissipation 1.8W / 1.5W
Luminous Flux (lm) 160 lm
View Angle 165°
Dimension (mm) 84*19*6
Operating Temperature -20~ 60
Max Series Connection 25 Modules
Waterproof IP 67
Warranty 5 Years
