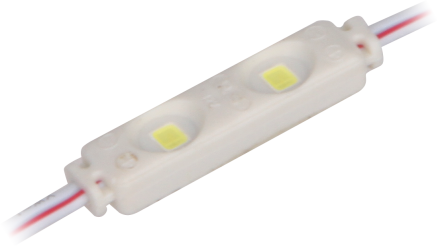

RISHANG MINI 2 LED

Features

  • Injection Molding Process with Opti Lens
  • High Efficiency Chip with low attenuation and long life
  • Energy Saving, Environment Friendly
  • LED Driver : Constant Voltage Driving System
  • Application : Narrow & Big Size Channel Letters & Light Box
.

Technical Specification



Model ARI 2835-2 LED Mini
LED (Chip) Taiwan Chip
Color (CCT) 3000K, 4000K, 6500K, 10000K, RED
Operating Power DC 12 V
Power Dissipation 0.33 W
Luminous Flux (lm) 18 lm
View Angle 120°
Dimension (mm) 30*7*5
Operating Temperature -20 ~ 70
Max Series Connection 20 Modules
Waterproof IP 67
Warranty 3 Years
