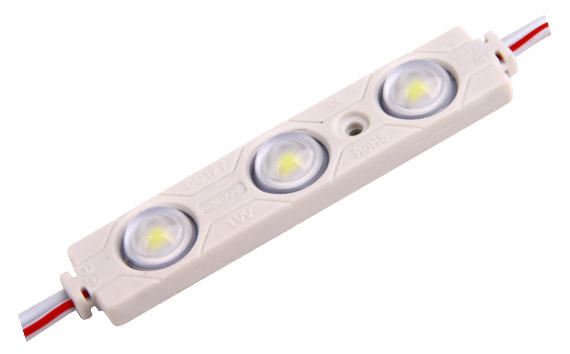

RISHANG 3 LENS

Features

  • Injection Molding Process with Opti Lens
  • High Efficiency Chip with low attenuation and long life
  • Energy Saving, Environment Friendly
  • LED Driver : Constant Voltage Driving System
  • Application : Narrow & Big Size Channel Letters & Light Box
.

Technical Specification



Model ARI 2835-3 LED Lens
LED (Chip) Taiwan Chip
Color (CCT) 3000K, 4000K, 6500K, 10000K, RED,GREEN, BLUE
Operating Power DC 12 V
Power Dissipation 1.2/0.72 W
Luminous Flux (lm) 105 lm
View Angle 160°
Dimension (mm) 65*15*5
Operating Temperature -20 ~ 70
Max Series Connection 20 Modules
Waterproof IP 67
Warranty 3 Years
