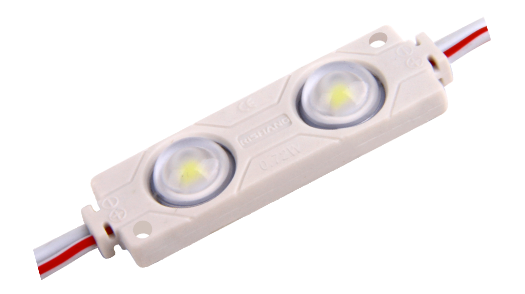

RISHANG 2 LENS

Features

  • Injection Molding Process with Opti Lens
  • High Efficiency Chip with low attenuation and long life
  • Energy Saving, Environment Friendly
  • LED Driver : Constant Voltage Driving System
  • Application : Narrow & Big Size Channel Letters & Light Box
.

Technical Specification



Model ARI 2835-2 LED Lens
LED (Chip) Taiwan Chip
Color (CCT) 3000K, 4000K, 6500K, 10000K, RED, BLUE, GREEN
Operating Power DC 12 V
Power Dissipation 0.72 W
Luminous Flux (lm) 60 lm
View Angle 160°
Dimension (mm) 43*15*5
Operating Temperature -20 ~ 70
Max Series Connection 20 Modules
Waterproof IP 67
Warranty 3 Years
