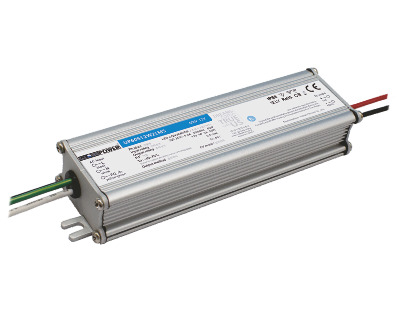

GLOBEPOWER 60W LED DRIVER (MADE IN KOREA)
Features
- Constant Voltage Design
- Protections : Overload/Over voltage/Short circuit/Over Temperature
- Cooling by free air convection
- IP68(60~400W) for outdoor installations
- 100% full load burn-in test
- Suitabe for LED Lighting and moving sign applications
- Metal case : 60~400W
- 3 Years Warranty
TECHNICAL DETAIL
- AC input voltage range : 180-264VAC
- DC adjustment range : Fixed can be modified within
- 5% rated ouput votage (but do not use over the rated Power)
- Over load protection : over 110% of rating, auto recovery
- With Standing voltage
- I-O : 3KVAC, I-FG : 1.5KVAC, O-FG : 0.5KVAC, 1minute
- isolation resistance
- I-O, I-FG, O-FG : 100 M ohms/500VDC
- Working temperature : -30~+60C (refer to output derating curve)
- Safety standards: EN61347-1, EN61347-2-13 / K61347-2-13
- EMC standards : EN61204-3, EN61000-3-2,3 (except for 40~60W)
- K00015,K61547,K61000-4-2,3,4,5,6,11
.
