Technical Specification

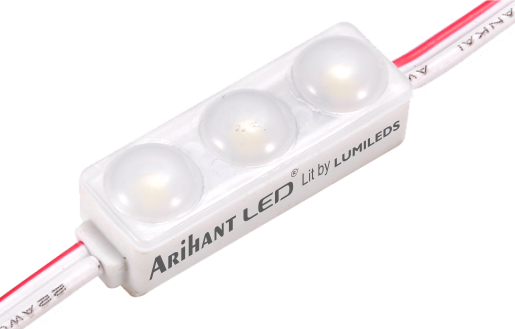

Model ARI-LM-MN-24-0.48W
LED (Chip) LUMILED
Color (CCT) 3000K, 4000K, 6500K,10000K
Operating Power DC 24 V
Power Dissipation 0.48 W
Luminous Flux (lm) 70 lm
CRI 85 %
View Angle 180°
Dimension (mm) 26*5.9*8.5
Operating Temperature -30 ~ 70
Max Series Connection 50 Modules
Waterproof IP 67
Warranty 5 Years
