Technical Specification

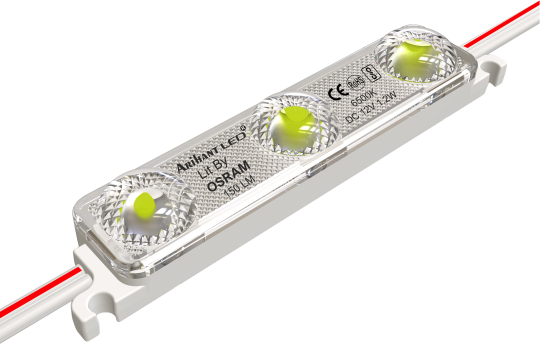

Model ARI-OS-BL-12-1.2W
LED (Chip) OSRAM
Color (CCT) 3000K, 4000K, 6500 K
Operating Power DC 12 V
Power Dissipation 1.2 W
Luminous Flux (lm) 150 lm
CRI 85 %
View Angle 180°
Dimension (mm) 75*15*11
Operating Temperature -30 ~ 70
Max Series Connection 20 Modules
Waterproof IP 67
Warranty 5 Years
