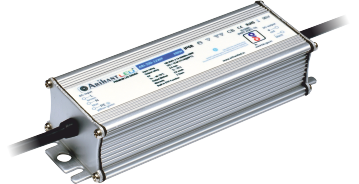

ARIHANTLED® PREMIUM 200W LED DRIVER

Features

  • Constant Voltage Design
  • Protections : Overload/Over voltage/Short circuit/Over Temperature
  • Cooling by free air convection
  • IP68(30~400W) for outdoor installations
  • 100% full load burn-in test
  • Suitabe for LED Lighting and moving sign applications
  • Metal case : 30~400W
  • 3 Years Warranty

        TECHNICAL DETAIL

  • AC input voltage range : 180-264VAC
  • DC adjustment range : Fixed can be modified within
  • 5% rated ouput votage (but do not use over the rated Power)
  • Over load protection : over 110% of rating, auto recovery
  • With Standing voltage
  • I-O : 3KVAC, I-FG : 1.5KVAC, O-FG : 0.5KVAC, 1minute
  • isolation resistance
  • I-O, I-FG, O-FG : 100 M ohms/500VDC
  • Working temperature : -30~+60C (refer to output derating curve)
  • Safety standards: EN61347-1, EN61347-2-13 / K61347-2-13
  • EMC standards : EN61204-3, EN61000-3-2,3 (except for 40~60W)
  • K00015,K61547,K61000-4-2,3,4,5,6,11
.

Technical Specification



Model No.           Input Voltage Output Voltage Max. Power to Use Output Current Dimension(mm) Efficiency IP Grade
ARI-30-12WP AC180~264V 12V 30W 2.5A(2.5A@50°C) 120*40*25 91% IP68
ARI-60-12WP AC180~264V 12V 60W 5A(5A@50°C) 155*40*25 91% IP68
ARI-100-12WP AC180~264V 12V 100W 8.3A(8.3A@50°C) 193*40*25 91% IP68
ARI-150-12WP AC180~264V 12V 150W 12.5A(12.5A@50°C) 159*56*37 91% IP68
ARI-200-12WP AC180~264V 12V 200W 16.6A(13.3A@50°C) 172*56*37 91% IP68
ARI-300-12WP AC180~264V 12V 300W 25A(18.8A@50°C) 198*66*47 91% IP68
ARI-400-12WP AC180~264V 12V 400W 33A(25A@50°C) 225*75*50 91% IP68
