TECHNICAL SPECIFICATION

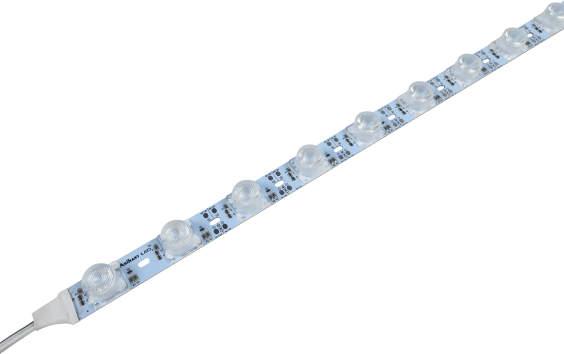

Model ARI EDGELIT BAR
Product Type D.S. Light Box
LED (Chip) TAIWAN
Color (CCT) 10000 K
Operating Power DC 12 V
LED / Mtr. 18 Leds / Mtr.
Power Dissipation 27 W / Mtr.
Luminous Flux (lm) 2340 lm / Mtr
View Angle 15*45°
Dimension (mm) 990*25*1.45
Operating Temperature -20~ 70
Max Series Connection Single
Waterproof IP20 / IP 67
Warranty 2 Years
