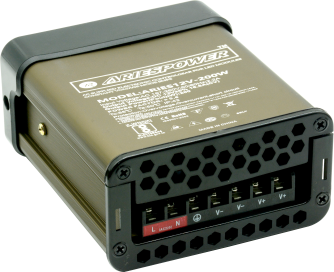

ARIESPOWER STANDARD 12V-200W SMPS

Features

• Constant Voltage Design
• Accord with IP43 (60W To 400W) for indoor and Outdoor installation
• Suitabe for LED Lighting and moving sign applications
• Alluminium Extrusion Case, Excellent heat-dissipation, High reliability
• Protection:Over Load / Short circuit
• 100% full load burn-in test
• 2 Years Warranty

        TECHNICAL DETAIL

• AC input voltage range : 176-264VAC
• Input frequency: 47-63Hz
• AC inrush current: Cold start, 60A / 230VAC
• Line regulation (full load ): *2%
•  Output Over load protection : Hiccup mode, auto- recovery
• Working temperature: -20~+60°C
• Storage Temperature:+40~85°C
• Safety Standards: GB4943.EN60950-1
• EMC standards : GB9254.EN55022  class A
• Cooling method: Built-in fan cooling
