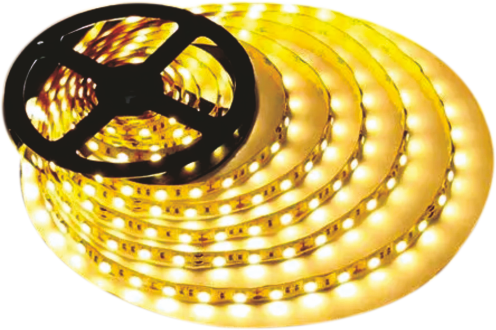

ARIESLED STRIP 240 LED

Features

  • 2835 SMD LED with long lifespan, low attenuation and high efficiency
  • Pure Copper FPC,Jointless PCB
  • "U" Shape solder pad design,Easy to soldering,Firm joints and no solder false
  • Ensuring excellent effect
  • Application : Cove lighting, profile lighting, props lighting,Fixture, Retail outlets etc.
.

   Technical Specification



Model No.           Size LEDs(LEDs/mtr) Input Voltage     Power(W/m) CRI  Color Temp.(K)    Lumi. flux (lm/m)  Lumi. Efficiency (lm/W)  IP Grade
      ARIHANT LED       5000*8*1.5 60 DC 12 7.2 W > = 80  10000 K  720 104 IP 20
ARIHANT LED 5000*8*1.5 120 DC 12 14.4 W > = 80 10000 K 1890 104 IP 20
ARIHANT LED 5000*8*1.5 120 DC 12 14.4W > = 80 6500 K 1890 104  IP 20
ARIHANT LED 5000*8*1.5 120 DC 12 14.4W > = 80 4000 K 1890  104 IP 20
ARIHANT LED 5000*8*1.5 120 DC 12 14.4 W  > = 80  3000 K 1890 104 IP 20
ARIHANT LED 5000*8*1.5 120 DC 12 14.4 W > = 80 RED, GREEN, BLUE - - IP 20
ARIHANT LED 5000*9.6*1.5 240 DC 12  24 W > = 80 10000 K 2679  89  IP 20
ARIHANT LED 5000*9.6*1.5 240 DC 12  24 W  > = 80 3000 K 2679 89 IP 20
