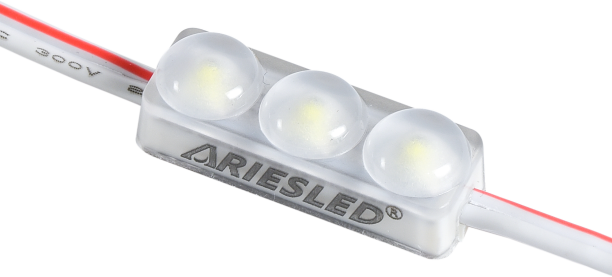

ARIESLED PREMIUM 3 MINI LED MODULE

Features

  • Constant Current Technology
  • Injection Molding Process With Opti Lens
  • High Efficiency Chip, High Brightness Reliability
  • Energy Saving, Environment Friendly
  • Application : Narrow, Big Size Channel Letters, light Box
.

Technical Specification



Model ARIES 2835 - 3 Mini LED
Product Type Opti Lens
LED (Chip) Taiwan Chip
Color (CCT) 3000k, 4000K, 6500K, 10000K, RED
Operating Power DC 12 V
Power Dissipation 0.7/0.4 W
Luminous Flux (lm) 60 lm
View Angle 160°
Dimension (mm) 27*9*8
Operating Temperature -20~ 60
Max Series Connection 50 Modules
Waterproof IP 65
Warranty 3 Years
